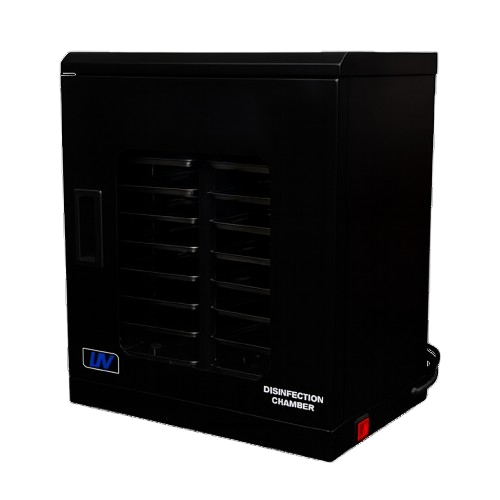

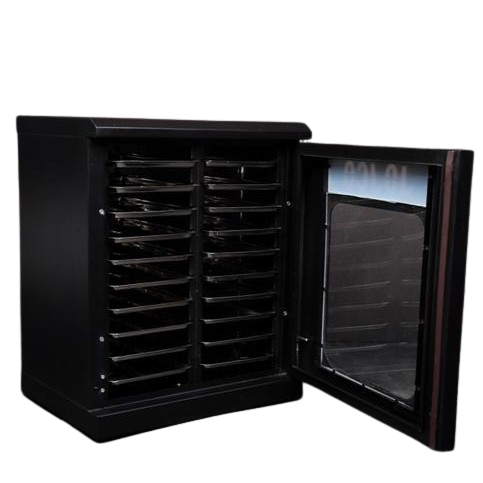

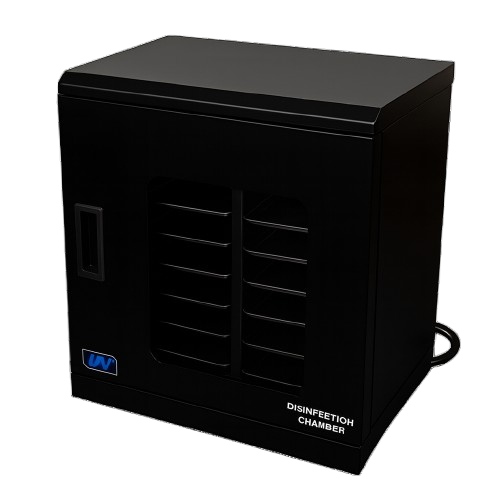

20 Trays UV Chamber

• Model: 20 Trays UV Chamber Chamber
• Dimensions: 440 × 375 × 270 mm Light Source: 2 × 8W Philips UV Tubes
• Number of Trays: 20 Stainless-Steel Trays
• Power Consumption: 16 Watts Power Supply: 220V AC, 50Hz
• Material: Rust-proof stainless steel interior + mirror finish reflective sheet

• Provides chemical-free, eco-friendly sterilization.
• Ensures uniform UV exposure for faster and more effective disinfection.
• User-safe design with automatic UV cut-off when the door is opened.
• Large capacity with 20 trays to sterilize multiple items simultaneously.
• Low power consumption makes it cost-efficient for daily use.
• Ideal for healthcare and industrial environments that demand strict hygiene standards.
• Durable, rust-proof, and easy to maintain.

Prepare the Items: Clean and dry the instruments before placing them inside the chamber.

Load the Trays: Arrange items evenly on the stainless-steel trays without overcrowding.

Close the Door: Ensure the magnetic gasket seals properly. The micro switch will engage automatically.

Turn On the UV Chamber: Switch on the power; the UV tubes will illuminate and begin the sterilization cycle.

Allow the Cycle to Complete: Keep the chamber closed for the recommended duration (typically 15–30 minutes depending on use).

Remove Items Safely: Switch off the chamber, open the door, and take out the sterilized instruments.

Regular Maintenance: Clean the trays and reflective surfaces periodically for best performance.
